1. Background
To achieve one of the main goals of the project that consists in making accessible information about drought and floods at the catchment level to the larger public, a structured website (called from now on IMDROFLOOD project geoportal) was designed to be user-friendly, accessible online and offer the data on demand. These aspects support an easier access to the data by removing usability barriers that could prevent or delay the optimal use of the data. Additionally, the geoportal follows the principles of open, modular and scalable technologies. This facilitates the development of a stable and flexible product by allowing a stepwise approach during the implementation of the geoportal. The prototype of the geoportal was built using exclusively open source solutions . Everyone is welcome to explore, download and test the obtained results using the IMDROFLOOD Geoportal functionalities.
2. Products

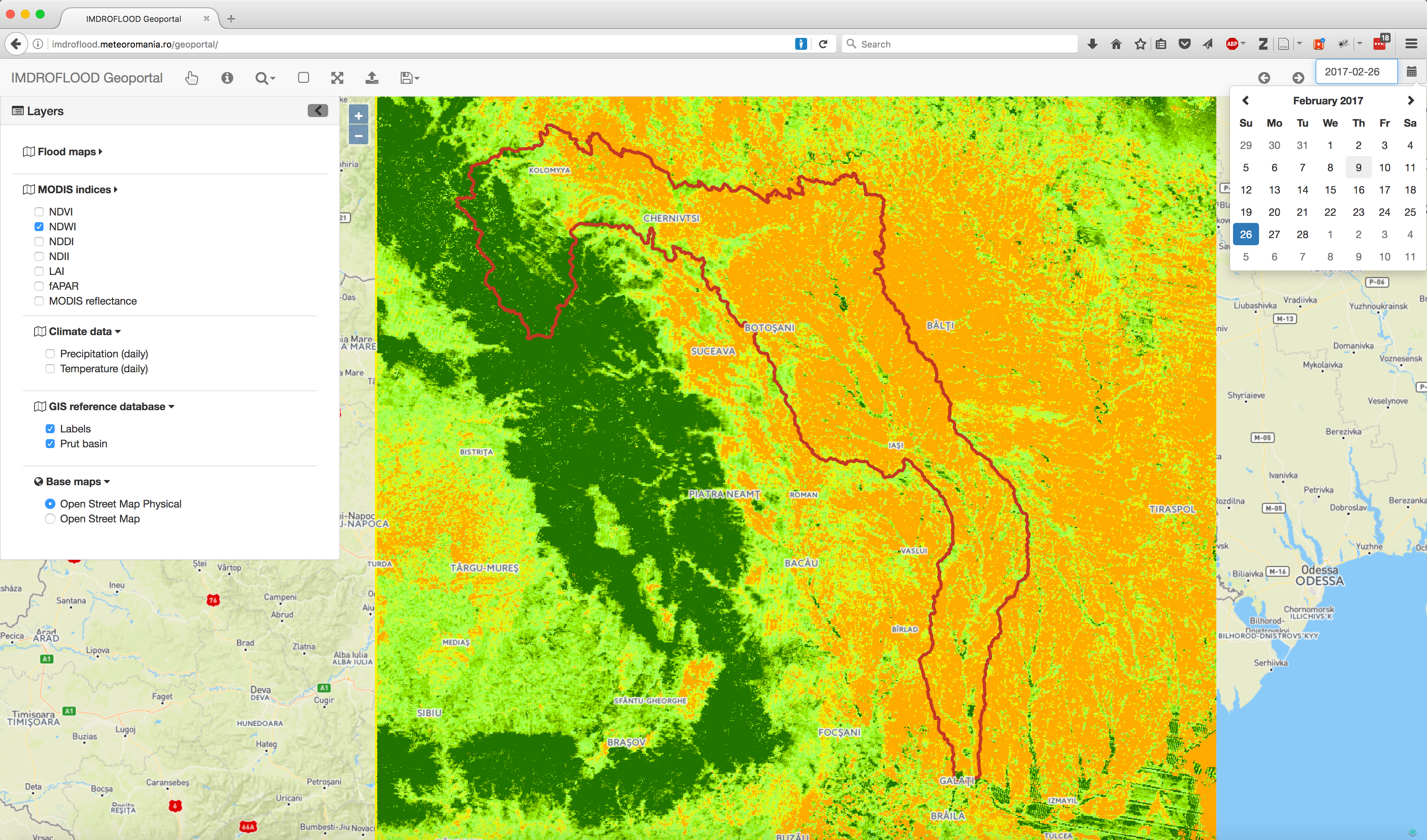

2.1. Normalized Difference Water Index (NDWI)
Product description:
The NDWI represents the water content in vegetation canopies. The NDWI has different formulas depending on the purpose. Two formulas were published in 1996 by McFeeters and Gao. First is more useful for open water features or flood delineation. The second is more useful for vegetation monitoring. IMDROFLOOD is implementing the second type of NDWI index
- NDWI = (NIR - SWIR) / (NIR + SWIR). Where, SWIR is MODIS band 6 and NIR is MODIS band 2.
Data characteristics:
- File format: GeoTiff
- Spatial resolution: 500m x 500m
- Temporal resolution: 2000 - 2018
- Projection: Pseudo Mercator (EPSG:3857)
Example:

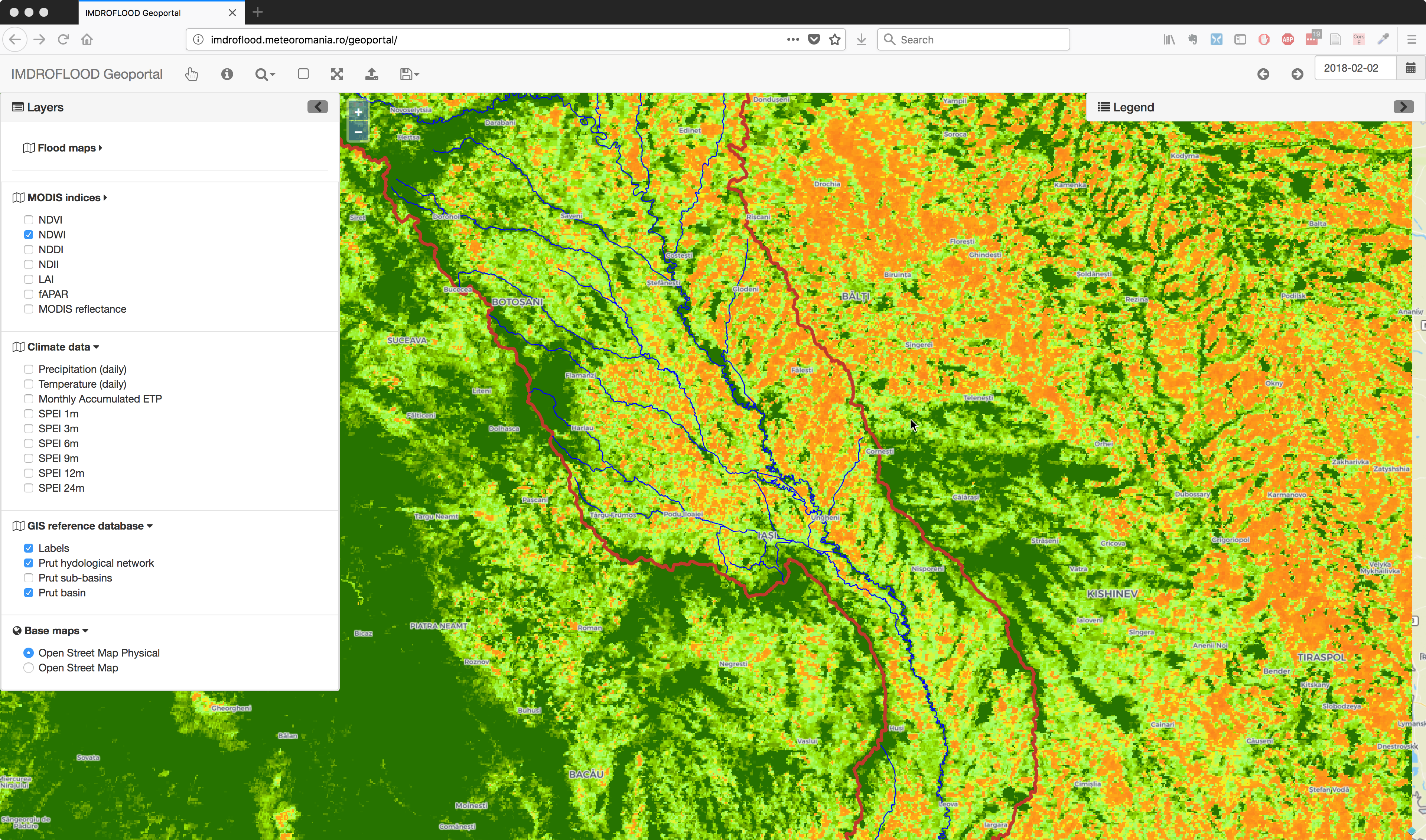

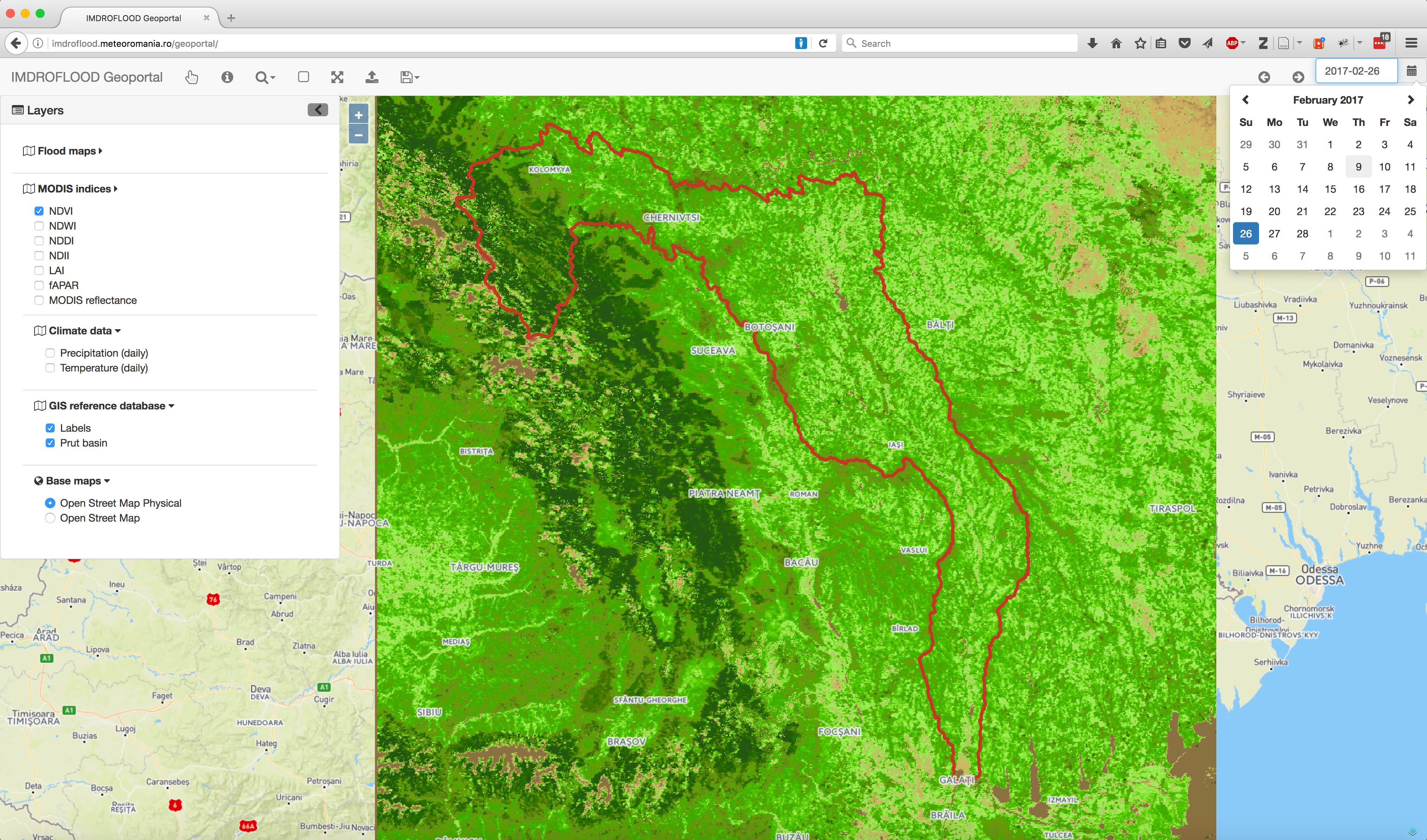

2.2. Normalized Difference Vegetation Index - NDVI
Product description:
NDVI is a measure of the amount and vigor of vegetation on the land surface (Prince and Justice 1991). It is used to monitor the vegetation cover, chlorophyll content and other vegetation properties. The contrast between intense chlorophyll pigment absorption in the red channel and high reflectance of leaf mesophyll in the near infrared channel is the main characteristic used for operating NDVI. It can be used to indicate vegetation stress, particularly due to water shortage, which is the main factor affecting vegetation and controls leaf pigment content and integrity (Maselli, 2004). The NDVI is calculated according to the following formula:
- NDVI = (NIR - Red) / (NIR + Red). Where, Red is MODIS band 1 and NIR is MODIS band 2.
Data characteristics:
- File format: GeoTiff
- Spatial resolution: 500m x 500m
- Temporal resolution: 2000 - 2018
- Projection: Pseudo Mercator (EPSG:3857)
Example:

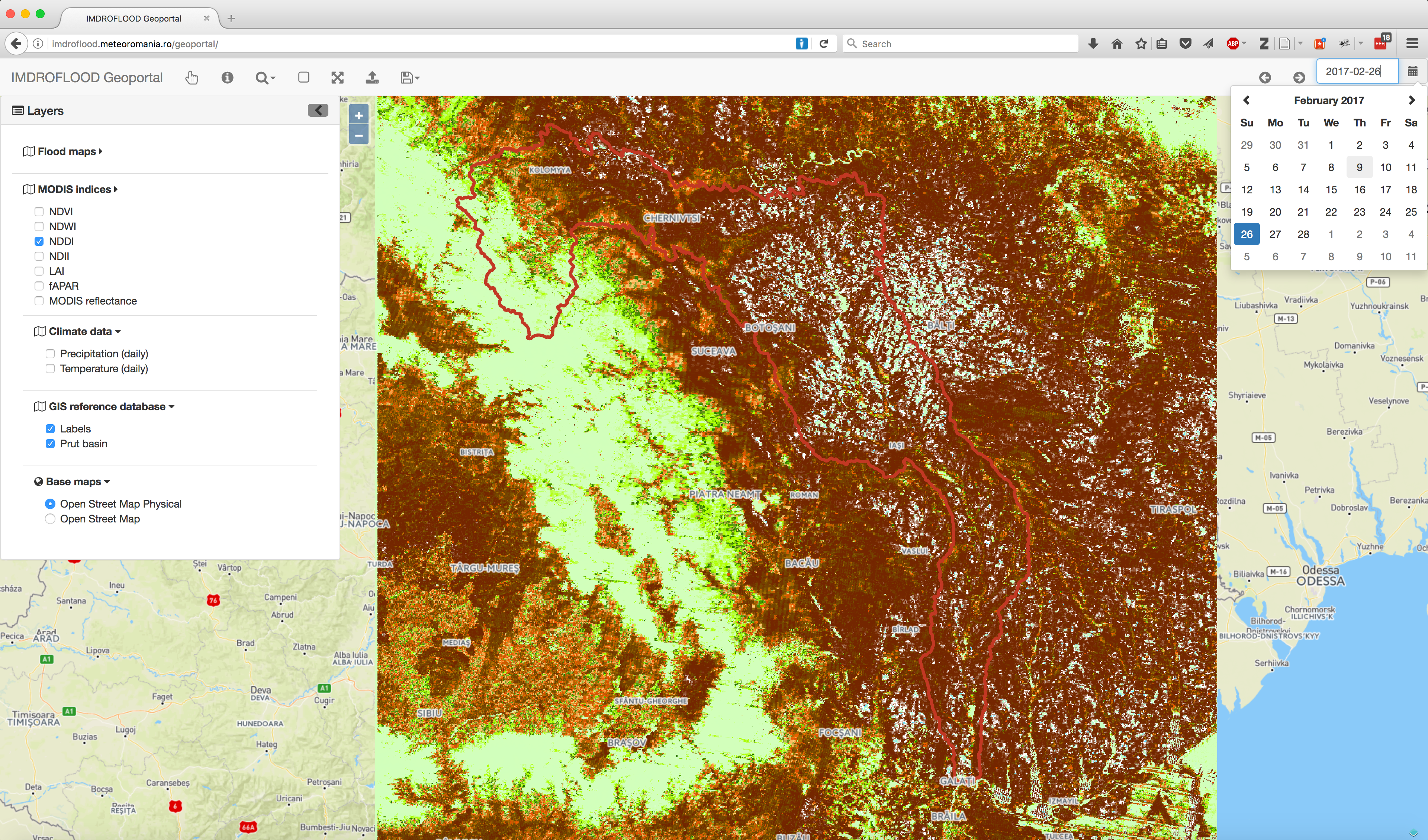

2.3. Normalized Difference Drought Index - NDDI
Product description:
NDDI can offer an appropriate measure of the dryness of a particular area, because it combines information on both vegetation and water. NDDI takes advantage of the fact NDVI senses plant matter and NDWI senses plant moisture. NDDI had a stronger response to summer drought conditions than a simple difference between NDVI and NDWI, and is therefore a more sensitive indicator of drought than NDVI alone (Gu et al., 2007). The NDDI is calculated according to the following formula:
- NDDI = (NDVI - NDWI) / (NDVI + NDWI). Where, NDVI is Normalized Difference Vegetation Index and NDWI is Normalized Difference Drought Index.
Data characteristics:
- File format: GeoTiff
- Spatial resolution: 500m x 500m
- Temporal resolution: 2000 - 2018
- Projection: Pseudo Mercator (EPSG:3857)
Example:
2.4. Normalised Difference Infrared Index - NDII
Product description:
NDII formula is similar to the NDVI. In addition to determining the water content of vegetation, the NDII can be effectively used to detect plant water stress according to the property of shortwave infrared reflectance, which is negatively related to leaf water content due to the large absorption by the leaf (Steele-Dunne et al., 2012; Friesen et al., 2012; Van Emmerik et al., 2015). The NDII is calculated according to the following formula:
- NDII = (NIR - SWIR) / (NIR + SWIR). Where, NIR is MODIS band 2 and NDWI is MODIS band 6.
Data characteristics:
- File format: GeoTiff
- Spatial resolution: 500m x 500m
- Temporal resolution: 2000 - 2018
- Projection: Pseudo Mercator (EPSG:3857)
Example:

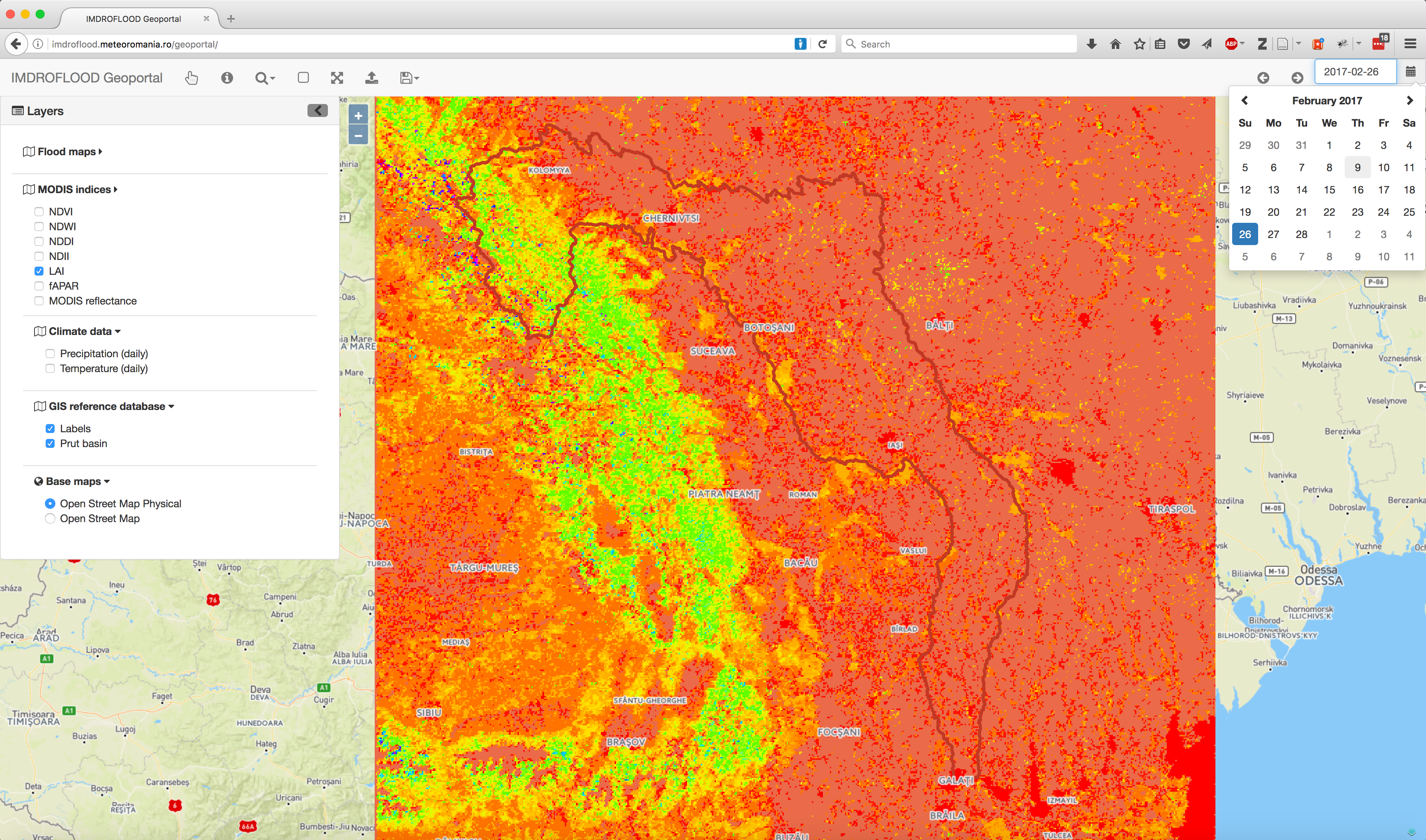

2.5. Leaf Area Index - LAI
Product description:
LAI appears as a key variable in many models describing vegetation-atmosphere interactions, particularly with respect to the carbon and water cycles (GCOS, 2004). The LAI parameter reflects the biochemical and physiological processes of vegetation, therefore indicating the productivity of vegetation, and it serves as an important input variable in land surface process models highlight that to understand the LAI for crops and its dynamics is very important for a wide range of agricultural studies, such as crop growth monitoring and crop yield estimation (Fang et al. 2011).
Data characteristics:
- File format: GeoTiff
- Spatial resolution: 500m x 500m
- Temporal resolution: 2000 - 2018
- Projection: Pseudo Mercator (EPSG:3857)
Example:

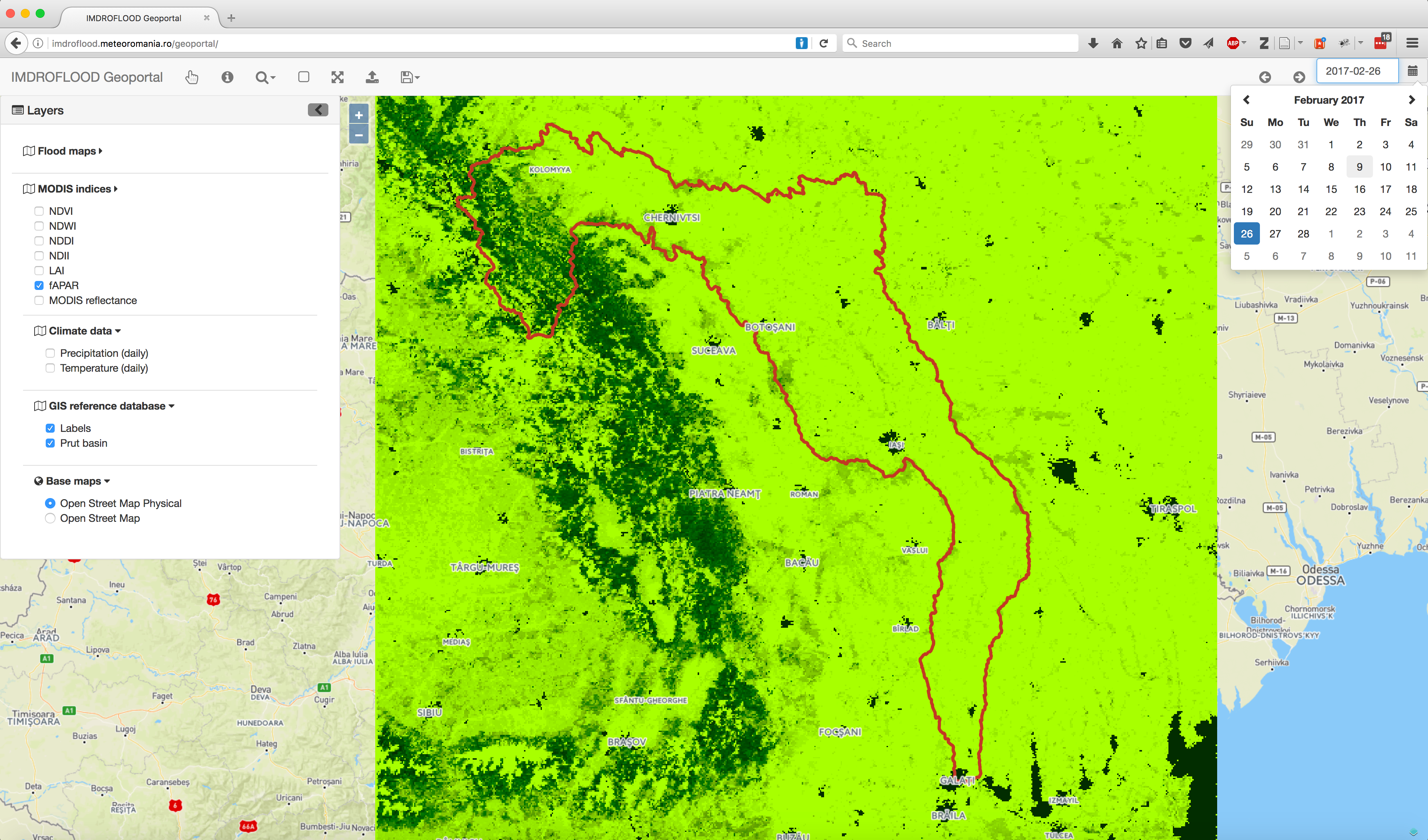

2.6. Fraction of Absorbed Photosynthetically Active Radiation Index - fAPAR
Product description:
(FAPAR) plays a critical role in the energy balance of ecosystems and in the estimation of the carbon balance over a range of temporal and spatial resolutions (GTOS, 2008). It is defined like the fraction of the incoming solar radiation in the Photosynthetically Active Radiation spectral region that is absorbed by a photosynthetic organism, typically describing the light absorption across an integrated plant canopy. This biophysical variable is directly related to the primary productivity of photosynthesis and some models use it to estimate the assimilation of carbon dioxide in vegetation.
Data characteristics:
- File format: GeoTiff
- Spatial resolution: 500m x 500m
- Temporal resolution: 2000 - 2018
- Projection: Pseudo Mercator (EPSG:3857)
Example:

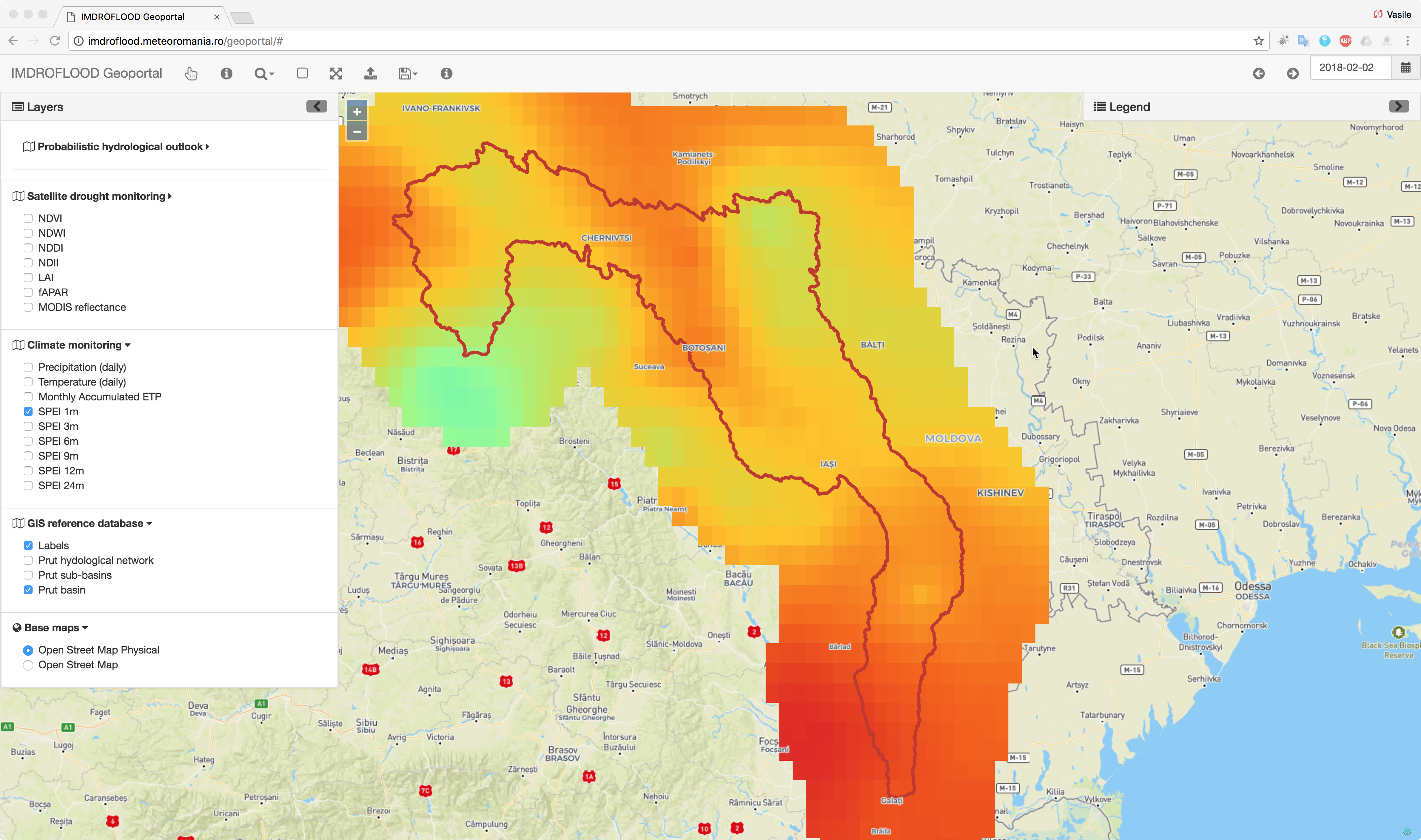

2.7. Global Drought Monitor - SPEI
Product description:
SPEI Global Drought Monitor is based on the Thortnthwaite equation for estimating potential evapotranspiration, PET.
Data characteristics:
- File format: GeoTiff, NetCDF
- Spatial resolution: 0.1º x 0.1º
- Temporal resolution: 1961 - 2018
- Projection: Pseudo Mercator (EPSG:3857)
Example:
3. Data access
We provide two ways to download the IMDROFLOOD products:
Direct download
Use the control to filter the calendar by the dates when products are available for each collection. Then, use the download icons to download the products in the desired format:
- Download Google Earth KML
- Download PNG
- Download Colour GeoTiff
- Download Raw GeoTiff
- Download full collection archive (top toolbar)
Data services
License
This work is licensed under a
Creative Commons Attribution 4.0 International License.
Credits
IMDROFLOOD Geoportal is build entirely with standard compliant free and open source software and open data.
Data
Software
Graphics
Ideas
References
- Asner, G. P., Wessman, C. A., & Archer, S. (1998), Scale dependence of absorption of photosynthetically active radiation in terrestrial ecosystems, Ecological Applications, 8, pp. 1003–1021
- Atzberger, C., Richter, K. (2012), Spatially constrained inversion of radiative transfer models for improved LAI mapping from future Sentinel-2 imagery, Remote Sens. Environ., 120, pp. 208–218
- Bajgain, R., Xiao, X., Wagle, P., Basara, J., Zhou, Y. (2015), Sensitivity analysis of vegetation indices to drought over two tallgrass prairie sites, ISPRS journal of Photogrammetry and Remote Sensing, 108, pp: 151-160, doi: 10.1016/j.isprsjprs.2015.07.004
- Biswal, A., Sahay, B., Ramana, K.V., Rao, SVCK., Sesha Sai, MVR. (2014), Relationship between AWIFS derived spectral vegetation indices with simulated wheat yield attributes in Sirsa district of Haryana, Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences, XL-8, pp: 689-694, doi: 10.5194/isprsarchives-XL-8-689-2014
- Brown, J., Jenkerson, C., Gu, Y. (2008), Using eMODIS Vegetation Indices for operational drought monitoring, National Integrated Drought Information System Knowledge Assessment Workshop: Contributions of Satellite Remote Sensing to Drought Monitoring, February 6-8
- Ceccato, P., Flasse, S., and Grégoire, J. M. (2002), Designing a spectral index to estimate vegetation water content from remote sensing data: Part 2, Validations and applications, Remote Sens. Environ., 82, 198–207
- Ceccato, P., Flasse, S., Tarantola, S., Jacquemond, S., Gregoire, J.M. (2001), Detecting vegetation water content using reflectance in the optical domain, Remote Sens. Environ., 77, pp: 22-33
- Chen, J.M., Black. T. (1992), Defining leaf area index for non-flat leaves, Plant Cell Environ., 15, pp. 421–429
- Chen, J.M., Menges, C.H., Leblanc, S.G. (2005), Global mapping of foliage clumping index using multi-angular satellite data, Remote Sens. Environ., 97, pp. 447–457
- Chen, X. and Pan, W. (2002), Relationship among phenological growing season, time-integrated normalized difference vegetation index and climate forcing in the temperate region of Eastern China, Int. J. Climatol., 22, pp: 1781-1792
- Choi, H.I. (2013), Parametrization of High resolution vegetation characteristics using remote sensing products for the Nakdong River Watershed, Korea, Remote Sensing, 5 (2), pp. 473-490, doi: 10.3390/rs5020473
- Fang, H., Liang, S., Hoogenboom, G. (2011), Integration of MODIS LAI and vegetation index products with the CSM-CERES Maize model for corn yield estimation, Int. J. Remote Sens., 32, pp. 1039–1065
- Fensholt R. and Sandholt I., (2003), Derivation of a shortwave infrared water stress index from MODIS near-and shortwave infrared data in a semiarid environment, Remote Sens. Environ., 87 (1), pp: 111-121
- Friesen, J., Steele-Dunne, S. C., and van de Giesen, N. (2012), Diurnal Differences in Global ERS Scatterometer Backscatter Observations of the Land Surface, IEEE T. Geosci. Remote Sens., 50, 2595–2602
- Gao, B., C., 1996. NDWI - A normalized difference water index for remote sensing of vegetation liquid water from space, Remote Sensing of Environment, 58, pp: 257-266
- Gower, S. T., Kucharik, C. J., & Norman, J. M. (1999), Direct and indirect estimation of leaf area index, fAPAR, and net primary production of terrestrial ecosystems, Remote Sens. Environ., 70, pp. 29–51
- GTOS (2008), Terrestrial essential climate variables – for climate change assessment, mitigation and adaptation, Biennial report supplement GTOS, 44
- GTOS (2009), Assessment of the status of the development of the standards for the Terrestrial Essential Climate Variables: FAPAR - Fraction of Absorbed Photosynthetically Active Radiation, 65
- Gu, Y., Brown, J., Verdin, J., Wardlow, B. (2007), A five-year analysis of MODIS NDVI and VDWI for grassland drought assessment over the central Great Plains of the United States, Geophys. Res. Lett., 34, L06407, doi: 10.1029/2006GL029127
- Hardinsky, M.A., Klemas, V., Smart, R.M. (1983), The influence of soil salinity, growth form, and leaf moisture on the spectral radiance of Spartina alterniflora canopies, Photogramm. Eng. Remote Sens., 49, pp: 77-83
- Hunt, E. R. Jr. and Rock, B. N. (1989), Detection of changes in leaf water content using near- and middle-infrared reflectances, Remote Sens. Environ., 30, 43–54
- Jensen, J.R. (2009), Remote Sensing of the Environment: An Earth Resource Perspective, Pearson Education India, India, 592 p
- Jonckheere, I., Fleck, S., Nackaerts, K., Muys, B., Coppin, P., Weiss, M., Baret, F. (2004), Review of methods for in-situ leaf area index determination Part I. Theories, sensors and hemispherical photography, Agric. Forest. Meteorol., 121, pp. 19-35
- Knyazikhin, Y., Glassy, J., Privitte, J.L., Tian, Y., Lotsch, A., Zhang, Y., Wang, Y., Morisette, J.T., Votava, P., Myneni, R.B., Nemani, R.R., Running, S.W. (1999), MODIS Leaf Area Index (LAI) and Fraction of Photosyntetically Active Radiation Absorbed by vegetation (FPAR) product (MOD15) algorithm theoretical basis (http://eospso.gsfc.nasa.gov/atbd/modistables.html)
- Kriegler, F.J., Malila, W.A., Nalepka, R.F., Richardson, W. (1969), Preprocessing transformations and their effects on multispectral recognition, in: Proceedings of the Sixth International Symposium on Remote Sensing of Environment, University of Michigan, Ann Arbor, MI, pp: 97-131
- Maselli, F., (2004), Monitoring forest conditions in a protected Mediterranean coastal area by the analysis of multiyear NDVI data, Remote Sen. Environ., 89, pp: 423-433
- MvFeeters, S.K. (1996), The used of Normalized Difference Water Index (NDWI) in the delineation of open water features, Int. J. Remote Sens., 17, pp: 1425-1432
- Myneni, R.B., Keeling, C.D., Tucker, C.J., Asrar, G., Nemani, R.R. (1997), Increased plant growth in the northern high latitudes from 1981 to 1991, Nature, 386, pp: 698 – 702
- Prince, S.D. and Justice, C.O (eds.) (1991), Coarse resolution remote sensing of the Sahelian environment, Int. J. Remote Sens, 12, pp: 1133-1421
- Reed, B.C., Brown, J.F., VanderZee, D., Loveland, T.R., Merchant, J.W., Ohlen, D.O. (1994), Measuring phenological variability from satellite imagery, Journal of Vegetation Science, 5, pp: 703 – 714
- Renza, D., Martinez, E., Arquero, A., Sanchez, J. (2010), Drought estimation maps by means of multidate Landsat fused images, Proceedings of EARSeL Symposium 2010, pp: 775 – 782, ISBN: 978-1-61782-366-4
- Rouse, J.W., Haas, R.H., Schell, J.A. and Deering, D.W. (1973), Monitoring vegetation system in the Great Plains with ERTS, Third ERTS Symposium, NASA SP-351 I, pp: 309-317
- Ross, J., (1981), The radiation regime and architecture of plant stands, The Hague, 391 pp.
- Sellers, P.J., et al., (1997), Modeling the exchange of energy, water, and carbon between continents and atmosphere, Science, 275, pp. 602-509
- Schlerf, M., Atzberger, C. (2006) Inversion of a forest reflectance model to estimate structural canopy variables from hyperspectral remote sensing data, Remote Sens.Environ., 100, pp. 281–294
- Sriwongsitanon, N., Gao, H., Savenije, H.H.G., Maekan, E., Saengsawang, S., Thianpopirug, S. (2016), Comparing the Normalized Difference Infrared Index (NDII) with root zone storage in a lumped conceptual model, Hydrol. Earth Syst. Sci., 20, pp: 3361-3377
- Steele-Dunne, S. C., Friesen, J., Van de Giesen, N. (2012), Using Diurnal Variation in Backscatter to Detect Vegetation Water Stress, IEEE T. Geosci. Remote Sens., 50, 2618–2629
- Tucker, C. J. (1980), Remote sensing of leaf water content in the near infrared, Remote Sens. Environ., 10, pp: 23-32
- Van Emmerik, T., Steele-Dunne, S. C., Judge, J., Van de Giesen, N. C. (2015), Impact of Diurnal Variation in Vegetation Water Content on Radar Backscatter From Maize During Water Stress, IEEE T. Geosci. Remote Sens., 53, 3855–3869
- Watson, DJ. (1947), Comparative physiological studies in the growth of field crops. I. Variation in net assimilation rate and leaf area between species and varieties, and within and between years, Annals of Botany, 11, pp. 41–76.
- Weiss, M., Baret, F., Smith, G. J., Jonckheere, I., Coppin, P. (2004), Review of methods for in situ leaf area index determination, Part II: Estimation of LAI, errors and sampling, Agricult. Forest Meteorol., 121, pp: 37–53
- Verrelst, J., Alonso, L., Delegido, J., Camps-Valls, G., Moreno, J. (2012), Retrieval of vegetation biophysical parameters using Gaussian Process techniques, IEEE T. Geosci. Remote, 50, pp. 1832-1843, doi: 10.1109/TGRS.2011.2168962
- White, M.A., Thornton, P.E., Running, S.W. (1997), A continental phenology model for monitoring vegetation responses to interannual climatic variability, Global Biogeochemical Cycles, 11, pp: 217 – 234.
- Zargar, A., Sadiq, R., Naser, B., and Khan, F. I. (2011), A review of drought indices, Environ. Rev., 19, pp: 333–349
- Zhang, Y.Q., Chen, J.M., Miller, J.R., Noland, T.L. (2008), Leaf chlorophyll content retrieval from airborne hyperspectral remote sensing imagery, Remote Sens. Environ., 112, pp. 3234-3247
- Zheng, G., Moskal, L.M. (2009), Retrieving Leaf Area Index (LAI) Using Remote Sensing: Theories, Methods and Sensors, Sensors, 9, pp. 2719-2745
- Zhou, L., Tucker, C.J., Kaufmann, R.K., Slayback, D., Shabanov, N.V., Myneni, R.B. (2001), Variations in northern vegetation activity inferred from satellite data of vegetation index during 1981 to 1999, Journal of Geophysical Research – Atmospheres, 106 (D17), pp: 20 069 – 20 083
- Xiao, Y., Zhao, W., Zhou, D., Gong, H. (2013), Sensitivity analysis of vegetation reflectance to biochemical and biophysical variables at leaf, canopy, and regional scales, IEEE T. Geosci. Remote, 52, pp. 4014–4024
- Yang, P., Shibasaki, R., Wu, W., Zhou, Q., Chen, Z., Zha, Y., Shi, Y., Tang, H. (2007), Evaluation of MODIS land cover and LAI products in cropland of North China Plain using in situ measurements and Landsat TM images, IEEE T. Geosci. Remote, 45, pp. 3087–3097
- edo.jrc.ec.europa.eu/documents/factsheets/factsheet_ndwi.pdf
- http://glovis.usgs.gov/
Contact
For more information about IMDROFLOOD geoportal access and data products please contact vasile.craciunescu@meteoromania.ro
